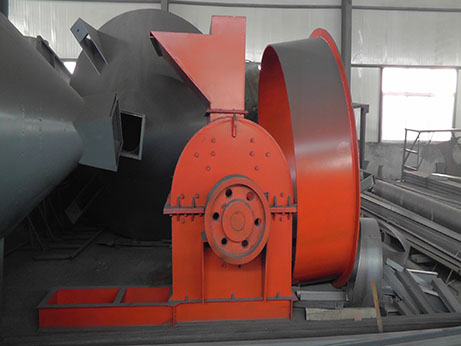

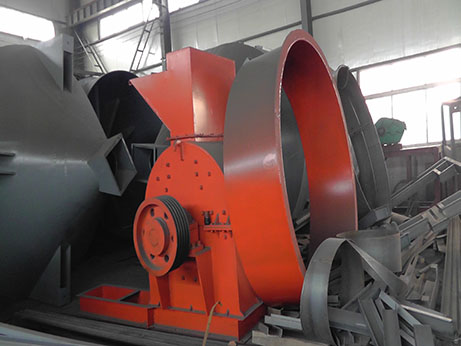

Hammer mill

Capacity:......

Introduction: The hammer mill is a necessary equipment for the early production of many industries, especially the pharmaceutical, feed, food, coating, and chemical industr.....

Product Description




The hammer mill is a necessary equipment for the early production of many industries, especially the pharmaceutical, feed, food, coating, and chemical industries. It has a wide range of versatility, can adjust the fineness of crushing, has the advantages of high production efficiency, low energy consumption, safe use, convenient maintenance, etc., so it has been favored by all walks of life.

The crushing effect of the hammer mill is mainly evaluated by three indicators: the fineness of crushing, the output per unit time of crushing and the unit energy consumption of the crushing process. These indicators depend on the physical properties of the crushed material and the structure of the crusher. , The shape of the crushing chamber, the number, thickness and linear speed of the hammers, the shape of the sieve hole and its aperture, the gap between the hammer and the screen surface and other factors.

Product Advantage




It is suitable for finely crushing medium hardness and brittle materials in mining, cement, coal, metallurgy, building materials, highway, combustion and other industries. The hammer crusher is used to crush various medium-hard and weakly abrasive materials. The compressive strength of the material does not exceed 100MPa, and the moisture content is less than 15%. The crushed materials are coal, salt, white Asia, gypsum, bricks and tiles, limestone, etc. It is also used to crush wood, paper or asbestos cement waste materials with strong fiber structure, elasticity and toughness to recover asbestos fibers, etc. The equipment can adjust the gap between the grate bars and change the discharge particle size according to user requirements to meet different users Different needs.

Product Parameter

model Rotor diameter mm) Rotor length (mm) Feeding size (mm) Discharge size (mm) Processing capacity (t/h) Power (kw) Weight (t)
PC-0404 400 400 100 10 2.5-5 7.5 0.9
PC-0604 600 400 100 15 10-15 twenty two 1.15
PC-0806 800 600 200 15 20-25 55 3.75
PC-0808 800 800 200 15 35-40 75 4.34
PC-1010 1000 1000 200 15 60-80 135 7.59
PC-1212 1250 1250 200 20 90-110 180 19.1

Working Principle




The hammer mill mainly crushes materials by impact. The material enters the hammer mill, and is crushed by the impact of the high-speed rotating hammer. The crushed material obtains kinetic energy from the hammer of the hammer crusher, and rushes to the baffle and screen in the frame from high speed. At the same time The materials collide with each other and are crushed many times. The materials smaller than the gap between the screen bars are discharged from the gap. The individual larger materials are impacted, ground, squeezed and crushed by the hammer again on the screen bars, and the materials are hammered The breaker hammer is extruded from the gap. So as to obtain the required particle size product.
